Camera marsarier BC-UNI 05 KEETEC cu RCA

Descriere

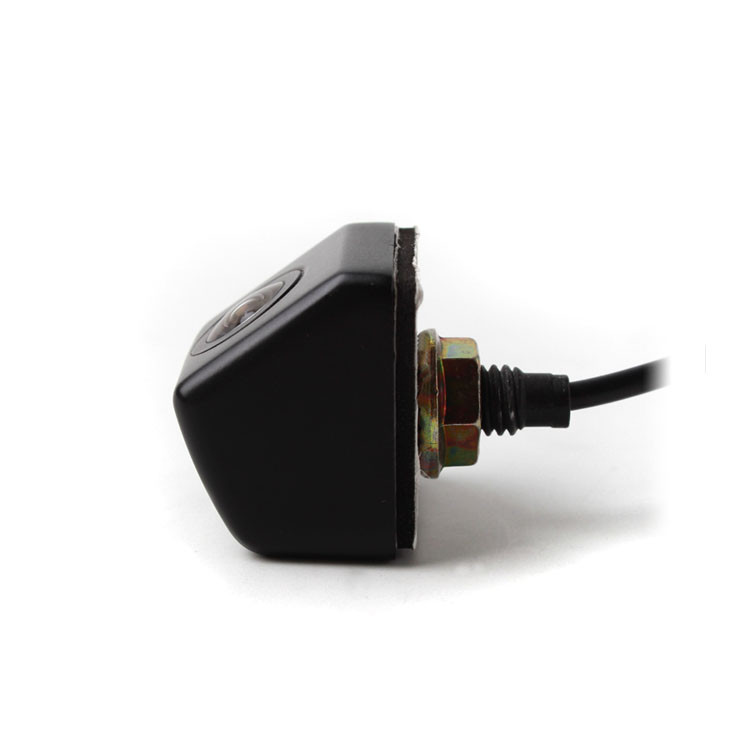

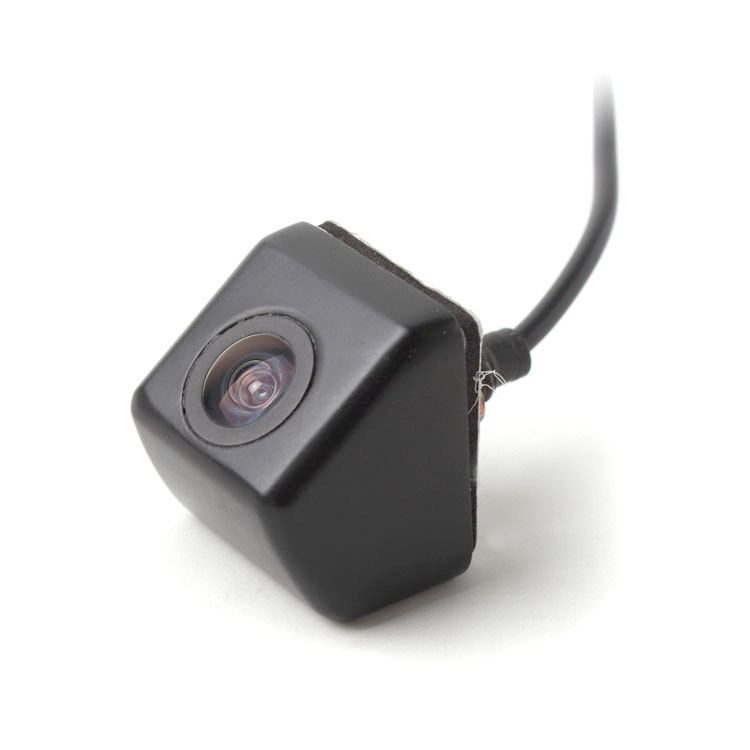

Camera marsarier universala cu unghi de vizualizare de 140 de grade si cu carcasa metalica.

Technical parameters:

• 1G3P 1/4 "Sensor
• effective pixels: 648x488
• The number of TV lines: 480
• Viewing angle: 140°
• poer supply: 12V
• TV system: NTSC
• weather protection: IP67
• Minimum illumination: Less than 1 Lux
• Electronic shutter: 1/60 1/10000 sec

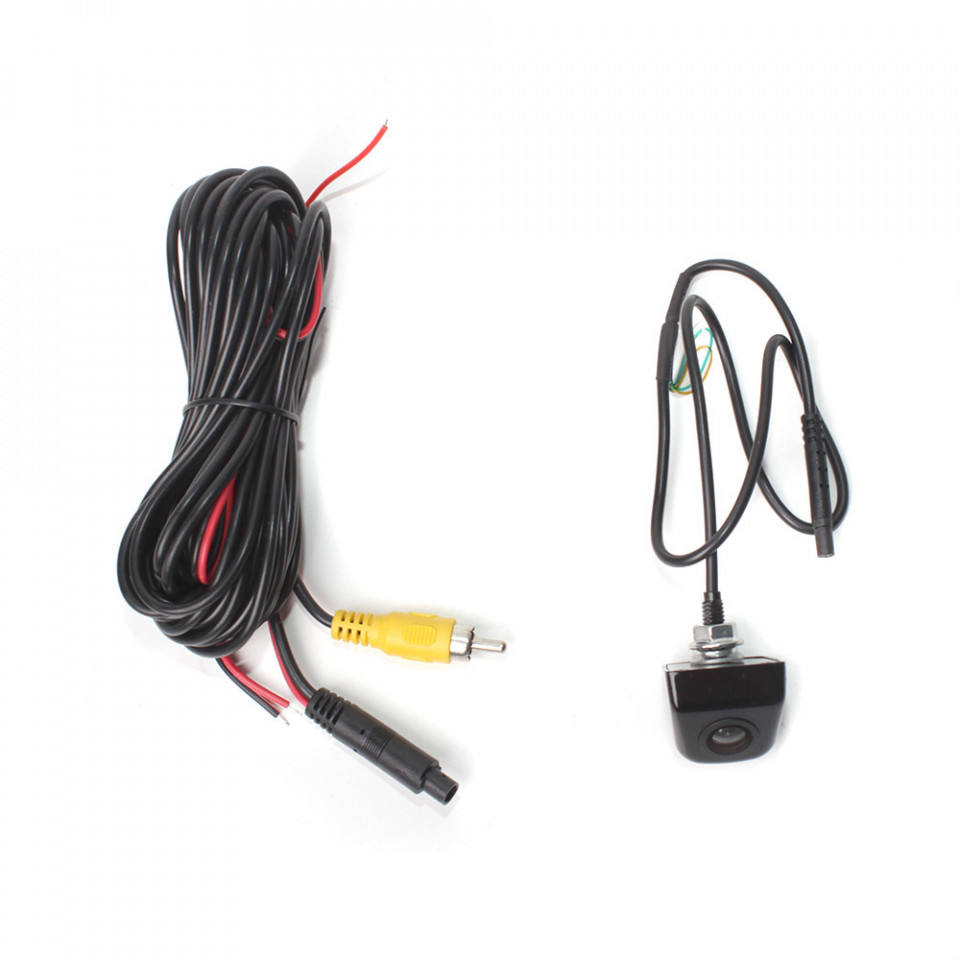

• signal cable length of 6 m ended with RCA connectors
• power cable length 1 m

Functions:

• WHITE LOOP               - guide lines - displayed after cutting
• GREEN LOOP               - image orientation - mirror image after cutting, for rearward installation as a parking camera
• BEIGE LOOP                - image orientation - upside down after cutting, installation on vertical surface

If the loops are intact, the camera sends the image:

• direct                          - forward installation
• upside up                    - installation on a horizontal surface (from bottom)
• without guide lines
